• Dynamic Tension Management: Featuring advanced closed-loop tension control, the system maintains consistent web tension throughout the entire slitting process, mitigating material distortion and ensuring impeccable roll integrity.
• Superior Edge Integrity: Delivers a consistently tidy and precise film edge after cutting, crucial for downstream processing and final product aesthetics.
• Optimized Energy Footprint: Designed with energy efficiency as a core principle, minimizing power consumption without compromising performance.
• Acoustic Signature Minimization: Operates with a remarkably low noise profile, contributing to an improved and more ergonomic operational environment.
• Robust & Intuitive Architecture: Possesses a reasonable yet robust structural design, ensuring long-term stability and reliability. Its highly intuitive operational interface guarantees extremely simple and efficient management.

• Unwind & Rewind Core Compatibility: Designed for a reel-releasing paper inner diameter of 76.2mm (3 inches), ensuring seamless integration with standard core types.
• Slitting Resolution: Capable of achieving a minimum cutting width of 50mm, offering exceptional versatility for diverse product dimensions.
• Operational Velocity: Achieves a high-speed throughput of up to 350 meters per minute, significantly boosting production efficiency.
• Energy Profile: Total power consumption is optimized at 4kW, operating on a 380V supply, driven by a robust 5 HP main motor.

Web Handling & Control:

• Unwinding: Equipped with one (1) 3-inch pneumatic airshaft for secure and concentric unwinding.
• Rewinding: Features two (2) 3-inch pneumatic airshafts, ensuring precise and independent control over each rewound roll.
• Center Drum: A rubberized center drum provides superior grip and consistent web path stability.
• Lateral Web Positioning: An integrated Panasonic Photo Web Guide system ensures impeccable lateral alignment of the material, critical for precision slitting.
• Drive & Control System: Power delivery is meticulously managed by a Delta Inverter, providing dynamic and precise control over the main motor.
• Unwind Braking System: A 20kg electromagnetic powder brake at the unwinding station, coupled with the auto tension control, guarantees consistent and precise web tension management.
• Tension Control Versatility: Includes both manual and automatic tension switches for transmission, offering operational flexibility.

Ancillary Systems & Ergonomics:

• Air Compression: A dedicated 0.75 HP compressor is integrated for all pneumatic functions.
• Trim Management: A trim blower system is included to efficiently remove waste material, maintaining a clean operational environment.
• Roll Handling: A dedicated table and trolley are provided for ergonomic and safe roll unloading.
• Maintenance & Support: A comprehensive machine tool kit, air guns, and extra pneumatic gauge parts are included for immediate operational readiness and ease of maintenance.
• Measurement & Interface: Features a precise meter count gauge for accurate length tracking, and an intuitive English-language HMI panel for streamlined operational protocols.
• Material Integrity: A specialized cork-coated roller is integrated to effectively remove wrinkles, ensuring pristine material surface integrity post-slitting.

Future-Proofing & Customization:

Understanding the evolving needs of your production, we also offer the option for supplementary 6-inch air shafts and 3-inch manual shafts for unwinding, providing enhanced versatility for varied core sizes and future production requirements.

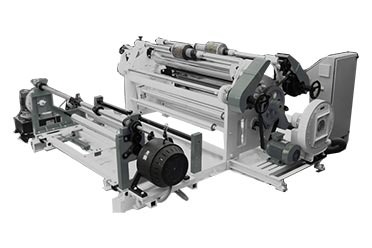

We are confident that this Drum Type Slitting Machine represents a strategic investment that will significantly elevate your production efficiency, product quality, and operational sustainability. We would be delighted to arrange a detailed technical presentation or a virtual demonstration to further illustrate how this system can be seamlessly integrated into your workflow and contribute directly to your strategic objectives.

Thank you for considering our advanced slitting solution. We look forward to the opportunity to partner with Daga Polymers in achieving new benchmarks of manufacturing excellence.
